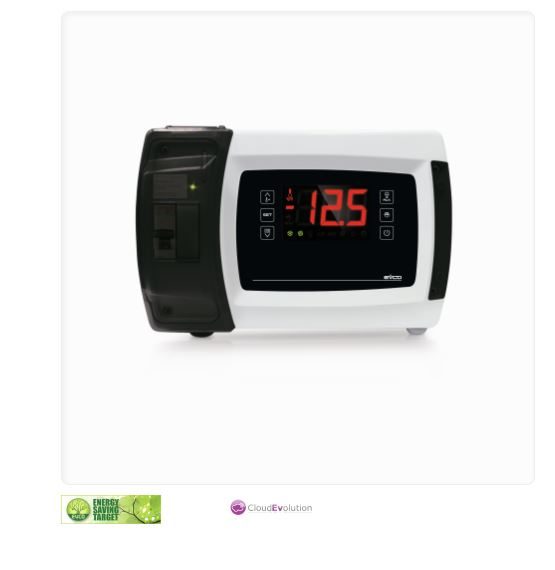

Evco Box1 Controller for 1 Phase Cold Rooms
EVBOX1 DATA-LOGGING EXTENSION
Electrical controllers for single-phase cold rooms with data-logging extension for compliance with the EN12830 standard
EVBOX1 data-logging extension is a range of electrical controllers for single-phase cold rooms.
The user interface consists of a large custom display with decimal point and function icons, with six buttons. It guarantees IP65 frontal protection.
The controllers use two relays, rated load 30 A @ 250 VAC, for direct control of high-power compressors and the evaporator fan, thus avoiding the use of contactors. They can also be connected directly to the load.
They can be adjusted for low and high relative humidity and feature an adaptive defrost system and energy-saving strategies.
Some models have a thermal-magnetic circuit breaker and include a driver for unipolar stepper-type electronic expansion valves. They all have a clock for memorising HACCP alarms and a data-logging extension on an SD card in compliance with the EN12830 standard.
The controllers are designed to be wall-mounted, with fixing screws and plugs.
